Batch intelligent distribution peristaltic pump
Data storage: Can store 8 sets of data for users.
Power-off saving: can automatically save the control parameters at the last power-off
Large flow rate: compatible with KZ50 pump head, the maximum transmission flow rate can reach 33L/min.
LCD touch screen: 3.5-inch color LCD screen, Chinese and English display, touch screen control.
Multiple modes: It has two working modes: delivery/distribution, and can perform repeated timed and quantitative filling.
Support external control: support RS485MODBUS communication protocol, analog quantity control, foot switch control.

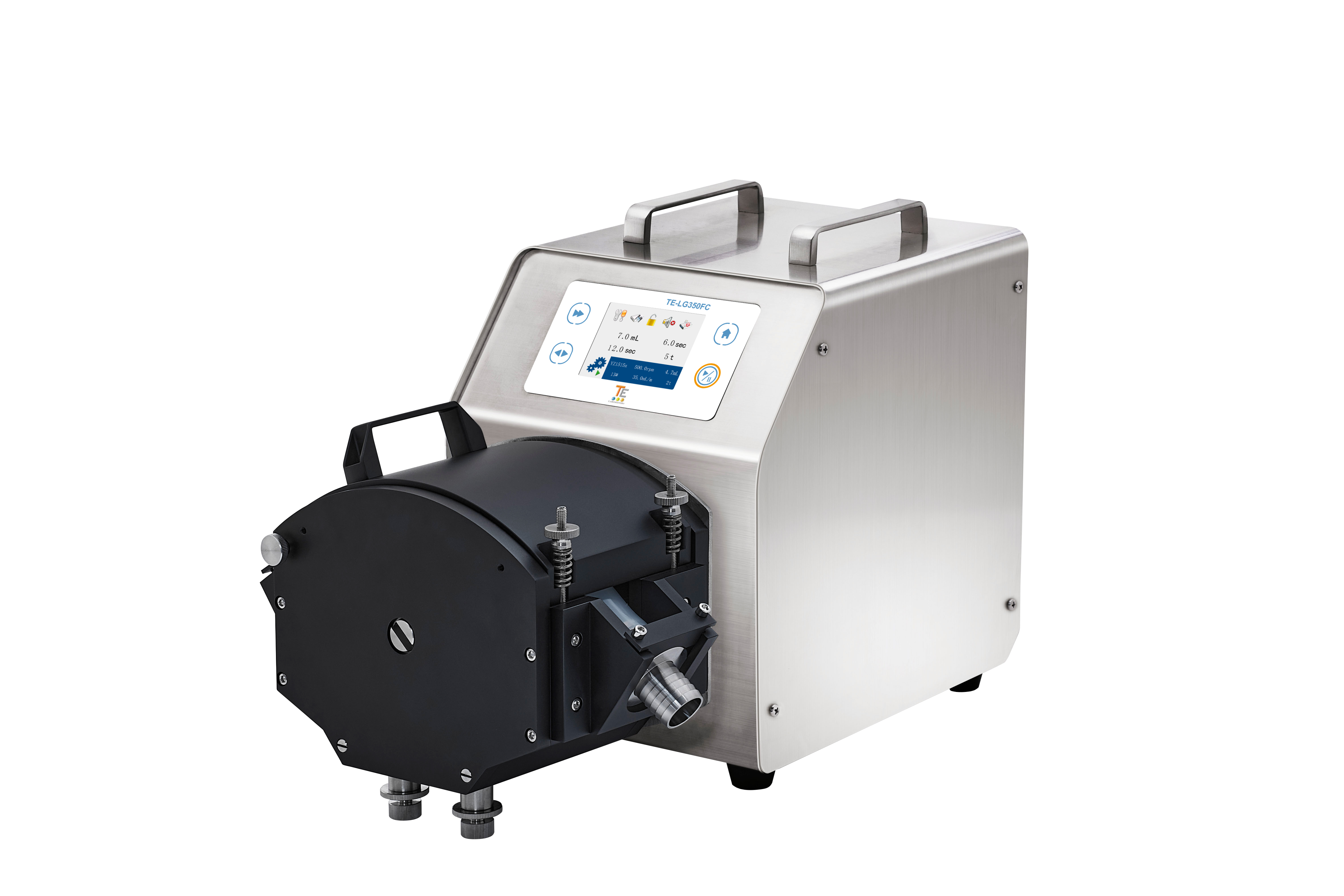

TE-LG350FC Digital High Flow Peristaltic Pump - Tengyi Technology Own Brand
TE-LG350FC is a large capacity intelligent distribution peristaltic pump. The digital high-flow peristaltic pump TE-LG350FC uses a 3.5-inch color LCD touch screen display. The digital high-flow peristaltic pump TE-LG350FC is simple and intuitive to operate. The digital high-flow peristaltic pump TE-LG350FC has two working modes: power transmission and power distribution. The digital high-flow peristaltic pump TE-LG350FC can be intelligently set according to different work needs. The motor torque of the digital high-flow peristaltic pump TE-LG350FC is very strong and suitable for the KZ50 pump. The maximum flow rate can reach 33L, and it supports multiple remote control methods such as RS485MODBUS.
TE-LG350FC Digital High Flow Peristaltic Pump - Tengyi Technology Own Brand
The digital high-flow peristaltic pump has multiple modes: it has two working modes: delivery/distribution, and can perform repeated timed and quantitative filling.
The digital high-flow peristaltic pump has power-off saving function: it can automatically save the control parameters at the last power off.
The digital high-flow peristaltic pump has data storage: it can store 8 sets of data for the user.
The digital high-flow peristaltic pump has a LCD touch screen: 3.5-inch color LCD screen, Chinese and English display, touch screen control.
Digital high-flow peristaltic pump with extremely high flow rate: compatible with KZ50 pump head, with maximum transmission flow rate up to 33L/min.
The digital high-flow peristaltic pump supports external control: RS485MODBUS communication protocol, analog quantity control, and foot switch control.
TE-LG350FC Digital High Flow Peristaltic Pump - Tengyi Technology Own Brand
Recommend
Used in mining, metallurgy, environmental
engineering, chemical industry water
treatment and other fields.
The tube gaps of the TEG series micro-volume multi-channel pump head can be adjusted to accommodate hoses with different wall thicknesses/pipe diameters. Designed specifically for small flow, multi-channel fluid dispensing/filling. It is easy to replace and fix the peristaltic tube. The gap between the pressure tubes is automatically adjusted according to the wall thickness of the peristaltic tube. The rollers are made of 304 stainless steel.
Driver model: CF1000
Speed range: 0.1-100 rpm (reversible)
Flow range: 0.0015~380ml/min
Maximum number of channels: 2
Remote control: optional
Pedals: optional
Peristaltic Pump TE Series has excellent repeatability as medical peristaltic pumps, as a transfer Peristaltic Pump, it can match various pump heads, to realize different pump head and drive combinations.
The transfer peristaltic pumps will not touch the liquid, ensuring the pollution-free operation, and the low shear force will not damage the carrier cells. it is an ideal tool for aggressive fluids. The Medical Peristaltic Pump has a good self-priming ability, can be idling, can prevent backflow, has no valves and seals, and is simple to maintain.
Driver model: CF1000
Speed range: 0.1-100 rpm (reversible)
Flow range: 0.0015~380ml/min
Maximum number of channels: 2
Remote control: optional
Pedals: optional
Quick description
* Drive Model: TE-BW100
* Speed range : 0.1-100 rpm（reversible）
* Flow range : 0.04~28.25ml/min
* Remote control : optional
